FTDI USB RS232 Extender Over Cat5 Driver Windows 10

£ 101.8 £ 78.9


Features and Benefit

        Full-duplex Data Communication

Pure Hardware Solution-real time Data Transfer

Transfer data or files between PCs. Equipments

One CAT-5 cable extension

Industrial Standard

Compatible with all RS-232 protocols

        Built-in 15KV ESD protection for all Serial Port and RJ45 Port Protection

        Supports Industrial Specification


Share it:

About This Product

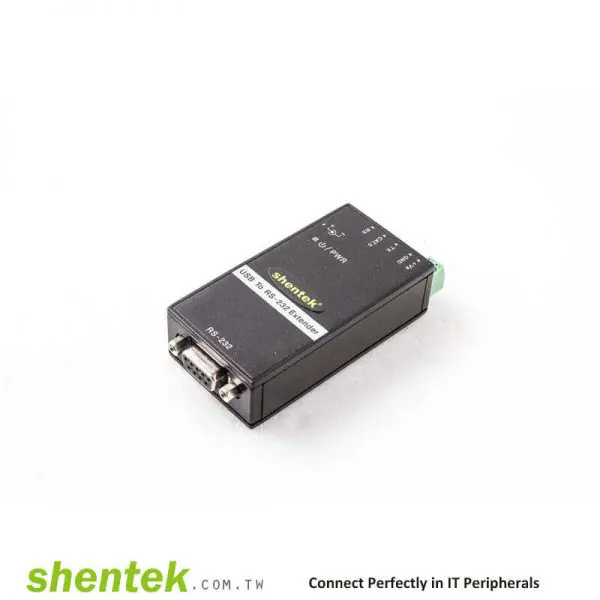

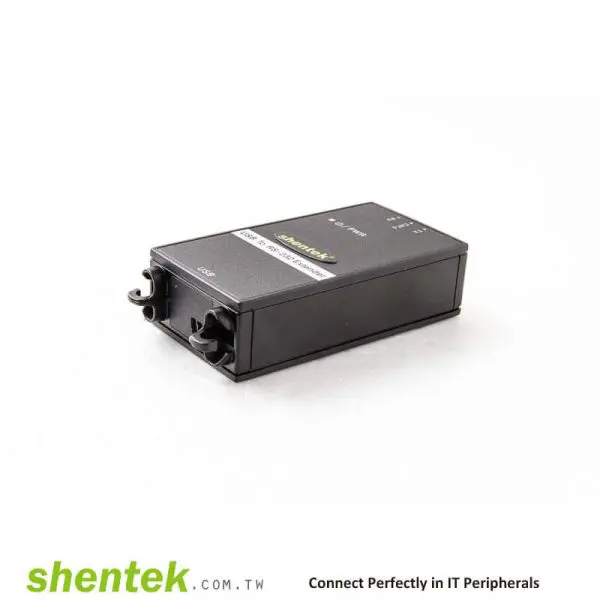

Industrial USB to High Speed 921K Serial RS-232 Extender Over Cat5 Up to 1.2KM(115.2k) With DIN Rail Wall Mount Kit



Introduction

        shentek releases USB to RS-232 Extender Over Cat 5, it is easy to using Cat 5 cable to link host and device from 200m to 1.2KM depend on data transfer rate. It has no driver need, just plug and play.

Hardware

                USB Mini Connector

                RS-232 Connector: DB9 Female

                Extender connector: RJ45

        Serial Interface

                Serial Standard: RS-232



        Serial Line Protection

                ESD Protection: 15KV ESD Protection for all signals(for RS-232)

                Surge Protection : 600W Surge Protection (RJ45 Port)



        Performance

                Baud rate: up to 921.6 Kbps



        Distance

                Max 1.2Km 115.2Kbps,CAT5,CAT5e



        Serial Communication Parameters

                Data Bits: 7, 8

                Stop Bits: 1, 1.5, 2

                Parity: None, Even, Odd, Space, Mark



        Serial Signals

                RS-232: TXD,RXD,CTS,RTS



        Driver Support

                Windows: XP, 2003, Vista, 2008, Win 7, Win 8.1, and Win 10

                Linux: 2.4, 2.6, and 3.0

                MAC: 8/9/X



        Physical Characteristics

                Housing: PC



        Environmental Limits

                Operating Temperature: -20 ~ 75

                Storage Temperature: -30 ~ 85

                Ambient Relative Humidity: 5 ~ 95% Non-Condensing



        Standards and Certifications

                CE and FCC supports



        Product Production

                Production: Made in Taiwan

                Product Location: Taipei, Taiwan



        Package Content

                USB to RS232 Extender set x 1

                USB Cable x 1

                DIN Rail Kit x 1

                Driver CD x 1

                Quick Instill Guide x 1



        Warranty

                Warranty Period: 2 Year

Weight0.66 kg
